Applications
■ General purpose instrument for gaseous, liquid and
highly-viscous media.
■ Refrigeration technology
■ Machine building
■ Transformers
■ Food industry
Special features
■ Case and stem from stainless steel
■ Version per EN 13190
■ High switching reliability and long service life
■ Temperature controller and indicator in a single instrument
■ One or two adjustable micro switches

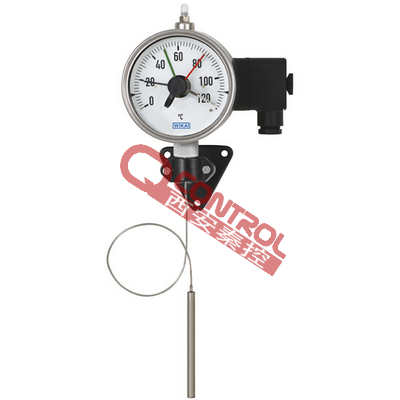

Description
Thermometers of this product range find their applicationwhenever a local temperature display is needed at the same
time as switching an electrical circuit.Expansion thermometers can be fitted into or onto almost anypoint. Versions with capillaries are used in locations whichare not easily accessible and where long distances haveto be bridged. They can therefore be used in just about anyapplication; such as in machine building, refrigeration andair-conditioning technology and other industrial applications.The case, capillary, stem and process connection are madefrom stainless steel. To optimise the fitting to the measuringpoint, different insertion lengths and process connections areavailable.
Standard version
Nominal size in mm
100
Measuring principle
Bourdon tube system
Filling medium
Xylol, silicone oil or syltherm
Models
Model Capillary entry Mounting option
H70.55.100 lower mount Surface mounting flange
M70.55.100 lower mount Surface mounting bracket
V70.55.100 back mount Panel mounting flangeIndication accuracy
Class 2
Rated operating ranges and conditions
EN 13190
Ingress protection
IP 44 per EN 60529 / IEC 529
Capillary entry
Lower mount or back mount
Case
Stainless steel
Bezel ring
Cam ring (bayonet type), stainless steel
Connection
Plain, stainless steel 1.4571
Capillary
Length in accordance with customer specifications (max. 10 m)
Ø 2 mm, stainless steel 1.4571, bending radius no less than
6 mm
Stem
Ø 8 mm, stainless steel 1.4571
Active sensor length
Depends on Ød and scale range
Dial
Aluminium, white, black lettering
Pointer
Aluminium, black
Window
Laminated safety glass (adjustable contact)
Instrument glass (fixed contact)
Mounting options
■ Surface mounting flange (H), stainless steel
■ Surface mounting bracket (M), die cast aluminium
■ Panel mounting flange (V), stainless steel
Types of contact
■ 1 fixed changeover switch
■ 2 fixed changeover switches
■ 1 adjustable changeover switch
■ 2 adjustable changeover switches
Options
■ Scale range °F, °C/°F (dual scale)
■ Accuracy class 1.0
■ Thermowell to DIN or customer specification
■ Surface mounting bracket from other material or anotherlength (A)
■ Other connection threads
■ Designs for customer-specific applications on request
